Designing a small goat barn...

seachick

Chillin' with the herd
Joined
Jun 1, 2010
Messages
26
Reaction score
18
Points
46
Location
Cumberland Foreside, Maine
Hi folks! We are getting 2 Nigerian Dwarf doelings this week. We have temporary summer housing for them and will be building a small barn for them this summer. I'm hoping to get some feedback on the design from you experienced goat owners :)

We are space-constrained. A 12 x 16 building is about max. We live in the suburbs on a bit less than an acre. We will never have more than 2-3 goats, except in spring before kids get sold. We live in Maine, with cold & snowy winters. I will milk for family use. This structure is about 20 feet from the house.

This is a gable-roofed building with a steep 12/12 pitch roof. There is a chicken coop is a separate attached smaller building (tighly weatherstripped to keep dust out of the goat area). The goat barn has a 12 x 10 hayloft above the stall area, and is open to the rafters on the 6 feet over the doors/storage/coop access/milking area, with a skylight.

In this plan, a 6x8 stall is always available at all times, and has the goat door to the paddock. Two other stall areas, with removable panels, are available for other uses. In August those two will have hay in them. We'll use the hay in stall B first, so that for winter our 2 goats will have the whole 6 x 12 area available. Then we'll use the hay in stall C, freeing that up for kidding in the spring. We'll use the hay in the loft last.

I know it's not ideal to have my milking stand and grain storage in the main open barn, but we're really space-constrained here so we need to make some compromises. Hopefully I've made the right ones? As far as quarantine, we would need to use a separate building- likely the garage- in that case.

Thoughts? Maybe I should make stalls A and B 5 feet wide, allowing stall C to be 5 x 4?
goatbarn_layout-jpg.155987


B&B Happy goats

Herd Master
Joined
Oct 7, 2018
Messages
4,845
Reaction score
12,865
Points
623
Location
North central florida
This goat owner thinks your plan is great ! Years ago (1977) i milked in my barn, with cows, pigs, chickens and goats....took milk inside, filtered and it was fine.....that was in N.H. .....Here in florida I milk outside....


seachick

Chillin' with the herd
Joined
Jun 1, 2010
Messages
26
Reaction score
18
Points
46
Location
Cumberland Foreside, Maine
Thank you folks!!! Can I ask another question? We're doing a wood floor in the building (linoleum over it in the stall areas). Should we just do 3/4" OSB plywood, or should we do boards?

Aesthetically, I'd prefer to see boards, but is seems like plywood would be easier to sweep up and keep clean? What do you guys think?

(P.S. I got my two doelings this week!!!!!)


bethh

True BYH Addict
Joined
May 29, 2018
Messages
514
Reaction score
1,143
Points
233
Location
Duluth, GA

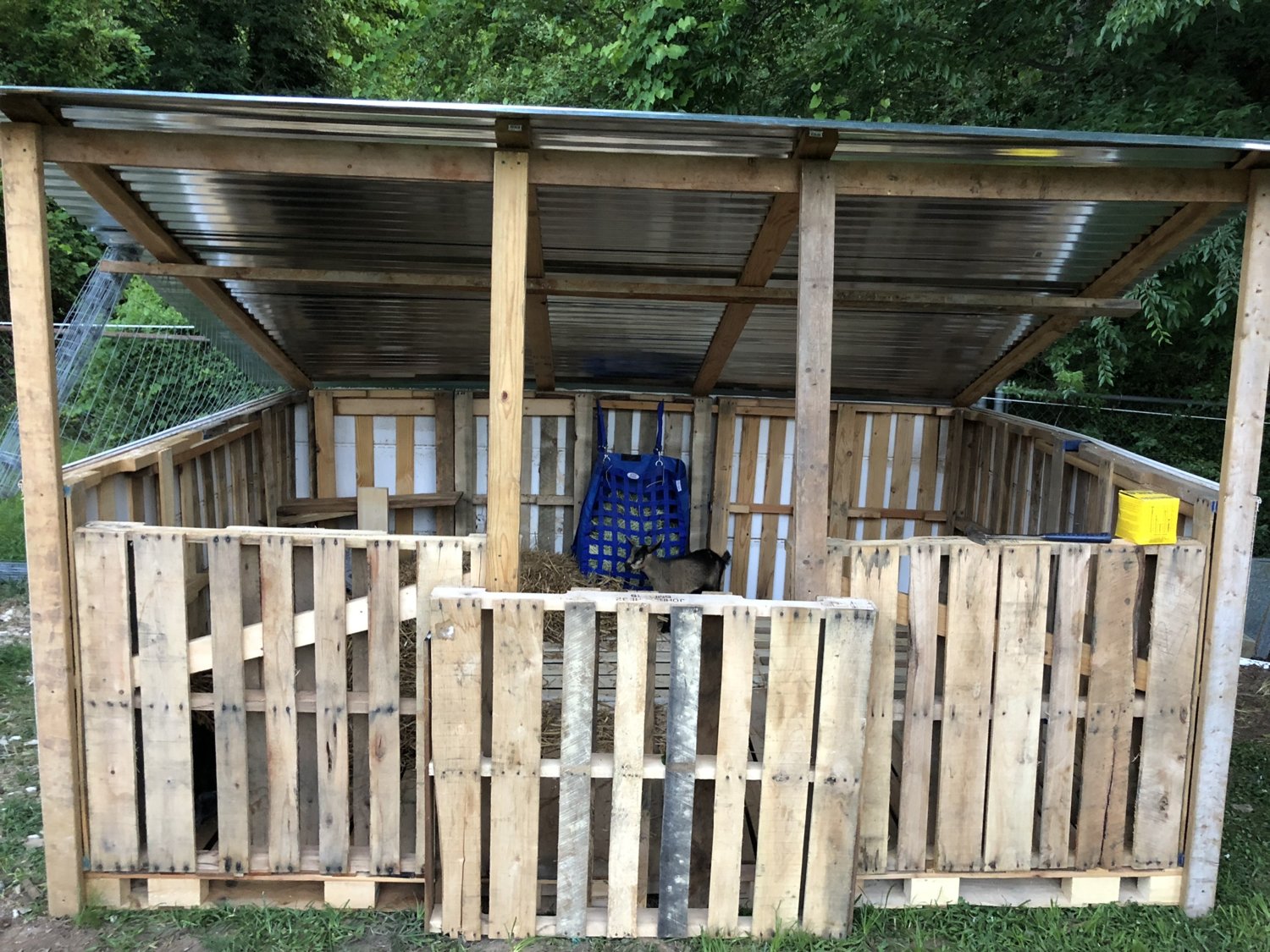

We are pretty inexperienced but here are pics of the goat house we built this past weekend. We are going to add linoleum to the floor and wire. When it gets cold we will add weather proofing. We will add on as needed.


B&B Happy goats

Herd Master
Joined
Oct 7, 2018
Messages
4,845
Reaction score
12,865
Points
623
Location
North central florida
We are pretty inexperienced but here are pics of the goat house we built this past weekend. We are going to add linoleum to the floor and wire. When it gets cold we will add weather proofing. We will add on as needed.
View attachment 62565 View attachment 62566 View attachment 62567

The absolute best thing (i have found) to use for the floor is sand, it drains awesome, and easy to change out..wood floors will rot from the urin and you will have to put something down to soak it up...and it will stink of urin....
And in colder weather just put some hay down to bed on.....if you can build them some outside benchs to lay and play on , you also get to sit on it with them ...:thumbsup

Last edited:

Rezchamp

Chillin' with the herd
Joined
Jun 2, 2017
Messages
22
Reaction score
23
Points
40
Location
the swamp&bush of Manitoba, Canada
Wow, nice one. The Goat Hilton.
My goat barn was a few random pieces of plywood nailed(with salvaged nails straightened by tapping with a 20oz framing hammer against a rock) on to some random lengths of salvaged 2x4's.
It measured 4'x10 @5&1/2' high. The door was merely a piece of cotton canvas. The 20 chickens and the 4 geese stayed in there with the 3 goats (a Dwarf Angora doe, a Nigerian Dwarf Buck and their doeling 6 month old kid). A 60 watt light bulb and their combined body heat kept the straw covered dirt "floor" toasty enough I got eggs all winter. Although I live where we routinely get -30*C with 4 days to a week long stretches of -40* no eggs froze, no birds froze, no goats froze. We did have 1 fatality though. One of the nest boxes apparently seemed like a good climbing facility to the goats and it tipped over. Of course I did eventually build a better one that was a tad bigger. ....and insulated. ....and safer. ...and seperate from the birds. Ironically the first set of triplets we ever got out of any of our goats were born in the improved "goat house".
Sorry for the side trip.
Getting kind of back on track....compared my first "goat house" yours is very, very nice.
I think it would actually provide a decent shelter to humans in certain situations.
. In case my emoticons don't show up the first one is s big smile and the second one is a "thumbs up".


animalmom

Herd Master
Joined
Dec 19, 2009
Messages
1,958
Reaction score
2,231
Points
343
Location
North Central Texas
Your goat house does look nice. Two hooves up!! I like the repurposed pallets. I also agree with @B&B Happy goats regarding the flooring... as in not using linoleum. I use pallets in my goat pens to give the goaties a way to walk around without getting in the mud (something we have had a lot of this spring). I put pallets inside all the shelters so they are not laying on the dirt/mud. The wee darlings have figured out how to get from one shelter to another to the third and then to the gate without setting hoof on the ground.
