The journey into the abyss of no return

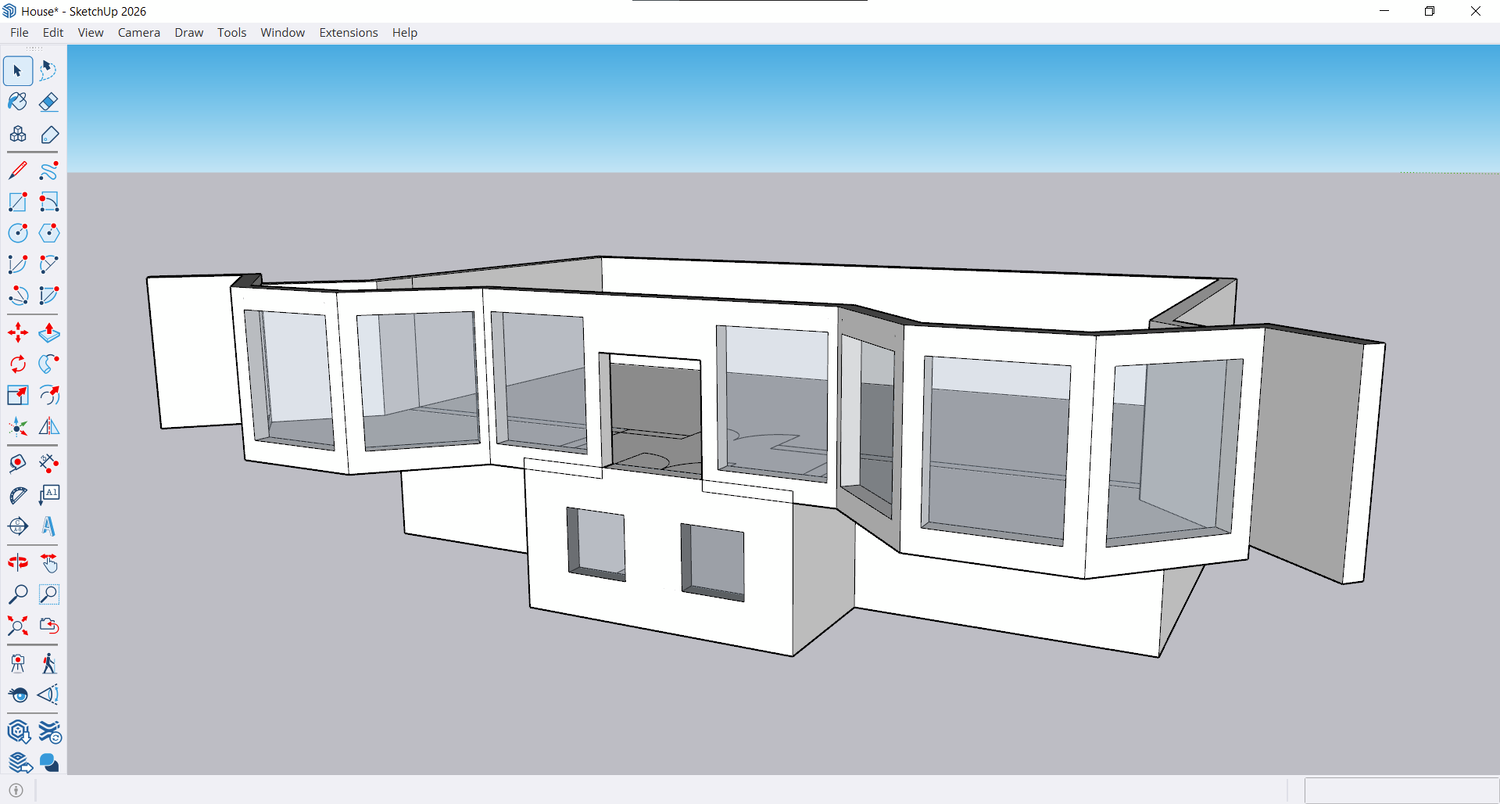

On the happy side of things.... I tossed Revit out the door, too cumbersome. Looks pretty sophisticated on Revit, but I can do just as much if not more damage on SketchUp for eighth of the price.

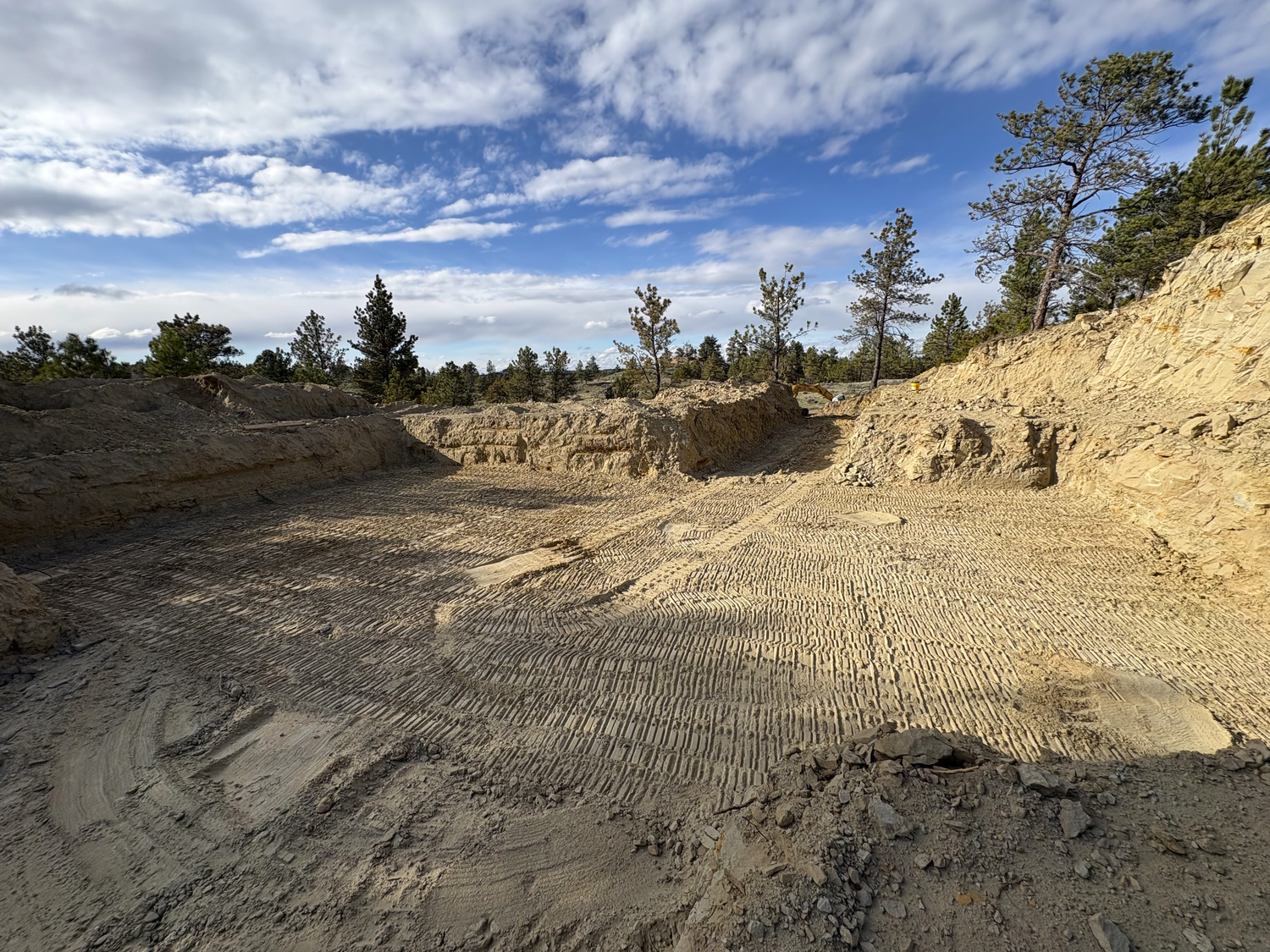

Burned through about 80 gallons of diesel to do that, cheaper than paying a contractor.

You can thank the wife for that one. She wanted a bay window to sit by to read so I took what materials I have on hand and designed it as such, just came out to larger than usual bay windows at 92 inches tall by 75 inches wide.
Just a thought about the window size. Had a guy locally build a house with huge windows, he had to have them redone, less than a year later. Actually he tore the whole house down and rebuilt. He has more money than I do. The wind was causing them to flex. I'm not sure what size they were and I'm not sure which way your wind blows.

Just a thought about the window size. Had a guy locally build a house with huge windows, he had to have them redone, less than a year later. Actually he tore the whole house down and rebuilt. He has more money than I do. The wind was causing them to flex. I'm not sure what size they were and I'm not sure which way your wind blows.
I have thought of that. Problem with a flat framed structure is nowhere for the wind to go except push equally on all windows/walls. Now look at the two buttresses on the side of the house, that creates what I would call truck bed effect, wind fills up the cavity (truck bed) area and any excess wind rolls over it unless you got the tailgate down.
Wonder what thickness windows he had.... These are 1.125 inches thick.
Our destructive winds come from the west/northwest.

I have thought of that. Problem with a flat framed structure is nowhere for the wind to go except push equally on all windows/walls. Now look at the two buttresses on the side of the house, that creates what I would call truck bed effect, wind fills up the cavity (truck bed) area and any excess wind rolls over it unless you got the tailgate down.
Wonder what thickness windows he had.... These are 1.125 inches thick.
Our destructive winds come from the west/northwest.
Oh, good I'm glad you took that into consideration. Just wanted to share in case you hadn't.

I don't know how thick they were...I just thought what he did was crazy.

Oh, good I'm glad you took that into consideration. Just wanted to share in case you hadn't.

I don't know how thick they were...I just thought what he did was crazy.
I went even as far as orientating the house 15° towards the west from due south for more heat in the winter time based on our latitude lines. Radon system will be installed, thermal mass that the winter sun can hit inside the house and that's why it looks like a funnel in the front, gather much light as possible in the winter time.
There will be a banana tree growing inside by the time I get done with various other crops...

I went even as far as orientating the house 15° towards the west from due south for more heat in the winter time based on our latitude lines. Radon system will be installed, thermal mass that the winter sun can hit inside the house and that's why it looks like a funnel in the front, gather much light as possible in the winter time.
There will be a banana tree growing inside by the time I get done with various other crops...
Good planning makes all of the difference. I'm so looking forward to following your build! 💗
